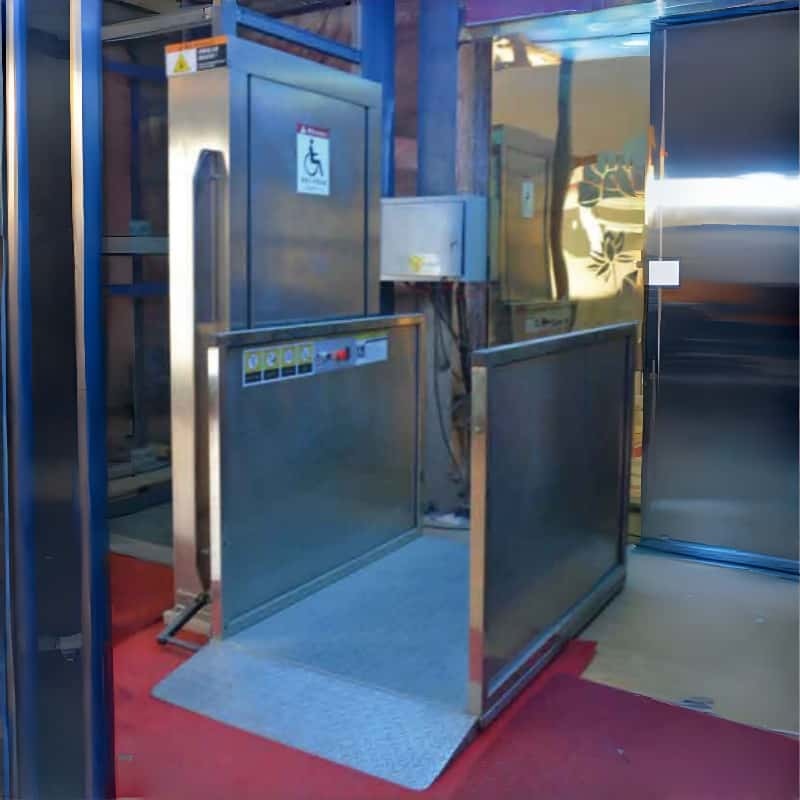

Comfortable Wheelchair Elevator Vertical Platform Lift With VVF Drive

Stable and Comfortable Wheelchair Elevator with VVF Drive and UPS Backup

Product Overview

Delivering safe and convenient vertical transportation for wheelchair users, elderly individuals, and people with reduced mobility, this stable and comfortable wheelchair elevator serves as a residential and commercial accessibility lift. Thanks to VVF drive technology and microcomputer board control, it ensures smooth and quiet operation. No traditional machine room is required, which saves construction costs and allows flexible installation in both new and existing buildings. It operates on standard household 220V single-phase power, so no industrial power supply is needed. A UPS backup power supply safely releases passengers during a power failure, and an automatic door machine with frequency conversion provides energy-efficient and reliable performance. This makes it an ideal accessibility solution for villas, private homes, hospitals, rehabilitation centers, and public buildings.

Key Features

• No Machine Room Required: Saves construction costs and allows flexible installation.
• VVF Drive Technology: Microcomputer board control ensures stable and comfortable rides.
• Automatic Door Machine: Frequency conversion for energy saving and safe operation.
• 220V Single Phase Power: Uses ordinary household power supply, no industrial power needed.
• UPS Backup Power Supply: Releases passengers safely during a power failure.
• Special Traction Machine Frame: Fixed on the guide rail, the building does not bear the force.

Safety Configuration

• Active Thermal Protection: Prevents overheating and extends motor life.
• Safety Loop Segment Detection: Continuously monitors safety circuits for reliable operation.
• Car Position Switch: Confirms the exact position of the elevator car.
• Car Emergency Stop Switch: Allows immediate stop inside the car.
• Safety Gear Safety Contacts: Ensures the safety gear engages properly.
• Speed Limiter Safety Contact: Monitors overspeed conditions and triggers protection.
• Do Not Open The Door Switch: Prevents door opening while the car is moving.

Other Configuration

• Stroke Limit: Prevents over travel at the top and bottom floors.
• Control Box: Centralized control for all elevator functions.
• Floor Calling Box: Convenient call buttons on each floor.
• Link Alignment Pin: Ensures precise guide rail alignment.
• Base Bracket And Top Bracket: Provide stable mounting points.
• Elevator Car With Light Curtain: Detects obstacles for safe door operation.
• Main Power Switch Box: Disconnects power for maintenance.
• Hydraulic Pump Station: Provides reliable lifting power.

Applications

• Private Villas: Multi story home accessibility and daily convenience.
• Luxury Residences: Premium vertical transportation with quiet and smooth performance.
• Townhouses: Floor to floor convenience for family use.
• Multi Story Private Homes: Easy access between floors for all family members.
• Senior Living: Accessible living support for elderly and reduced mobility residents.
• Hospitals And Clinics: Patient transport and wheelchair access.
• Rehabilitation Centers: Mobility support and accessible transport.
• Public Buildings: Disabled access compliance and public facility accessibility.
